Mumbai-Nagpur ExpresswayUse case

Navayuga Engineering Company Ltd.
Navayuga Engineering Company Limited (NECL) who has been awarded two of the total 16 packages of Mumbai-Nagpur Expressway, is an Indian engineering and infrastructure company that provides construction services in the field of roadways, irrigation, bridges, ports, power, marine structures etc.

Some of the major feats of NECL include:

  • The construction of Quazigund to Banihal Highway project. It is one of the most critical projects for India as it ensures all-weather connectivity to north Kashmir through Pir Panjal Pass
  • The construction of the DHOLA-SADIA BRIDGE. It is India’s longest river bridge constructed over the Brahmaputra River, spanning a total of 9.15 km.
  • The construction of the Polavaram Dam Project. It is the most prestigious and challenging project in India with 7.2 lakh acres of new ayacut created for irrigation during phase I and 12 lakh acres in phase II, and another 23.5 lakh acres of stabilized ayacut.

About Mumbai-Nagpur Expressway - Samruddhi Mahamarg

https://test.infycons.com/wp-content/uploads/2022/02/Transportation-Engineering-1.webp

The Samruddhi Mahamarg, also known as the Nagpur-Mumbai Super Communication Expressway, is a partially opened 700-kilometer greenfield expressway that connects Nagpur in the Indian state of Maharashtra to Mumbai, the capital city of the state. The expressway is expected to provide a faster and more efficient route for travel between the two cities, reducing travel time from the current 18-20 hours to just 8-10 hours.

The expressway is being promoted as a major infrastructure project in India, with the goal of boosting economic development in the region by providing improved connectivity and reducing transportation costs. The expressway will pass through several districts in Maharashtra, including Nagpur, Wardha, Washim, Buldhana, Akola, Amravati, and Thane, and is expected to provide access to several industrial and agricultural centers along the way.

Project details

Navayuga Engineering Company Limited (NECL) has been awarded two packages for the construction of the Nagpur-Mumbai Super Communication Expressway. Package 15 covers a distance of 28 kilometers from the village of Vashala BK to the village of Birwadi, stretching from chainage 636.479 to 664.479. Package 16, on the other hand, covers a distance of 36.883 kilometers from the village of Birwadi to the village of Amne in the Thane district, and extends from chainage 664.479 to 701.362.

Site Photo Slides
17
16
15
14
13
12
11

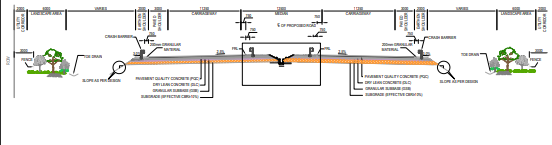

Typical Cross Section of the project

  • Roadway: The roadway consists of a carriageway, a paved shoulder, an unpaved or earthen shoulder, and side slopes. The median width is 15 meters and has a slope of 1/6 towards the median drain. The camber is 2% for the carriageway and paved shoulder (excluding superelevated stretches) and 3% for the unpaved shoulder. The side slope is defined as 1 vertical to 2 horizontal in cut or fill conditions.

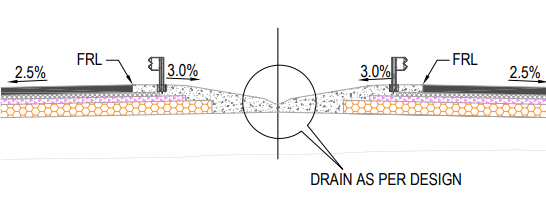

  • Median Drain: The insertion of a drain in the median portion is a critical aspect of the project as the pavement layers extend to the inward median slope.

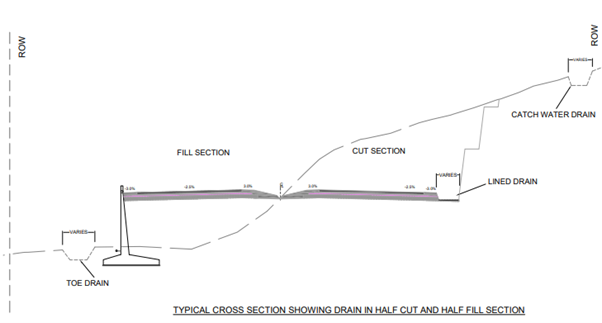

  • High Cut / Fill Scenarios: As the expressway passes through the mountainous terrain of the Western Ghats, it requires significant cutting and filling conditions. The side slopes in these areas include berms at varying depths.
  • Service Roads: Some sections of the Nagpur-Mumbai expressway have service roads adjacent to the main carriageway, on either one side or both sides. The service roads have a carriageway with an earthen shoulder and a camber of 2.5%. A toe drain is proposed between the main carriageway and the service roads.
https://test.infycons.com/wp-content/uploads/2023/02/Picture3.webp
https://test.infycons.com/wp-content/uploads/2023/02/Picture2.webp
https://test.infycons.com/wp-content/uploads/2023/02/Picture1.webp
OTHER CHALLENGES

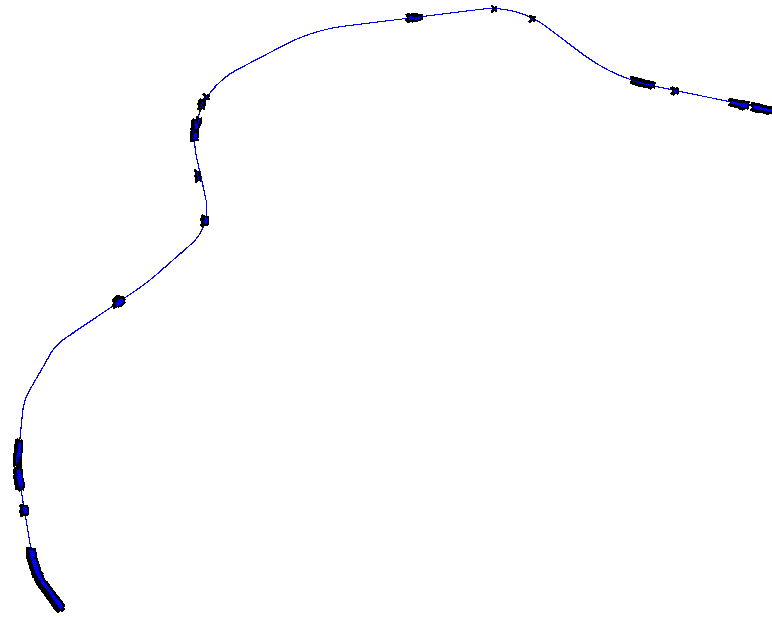

Data for the project is collected at each stretch where construction is feasible. However, this fragmented data collection creates a challenge when it comes to processing the information to generate sections.

To overcome this challenge, the NECL utilized AutoPlotter software. By importing the collected survey data into AutoPlotter, they were able to efficiently generate section data using the various options available within the software. This made it possible to effectively process the fragmented data and produce accurate and comprehensive section data for the expressway.

https://test.infycons.com/wp-content/uploads/2023/02/navayuga-challenge.webp

Road Estimator

Road Estimator has demonstrated its effectiveness and efficiency in generating cross sections and calculating quantities in various projects, including the Mumbai-Nagpur Expressway project awarded to NECL. With its user-friendly interface and advanced features, the software was able to address all the requirements of the project with ease and precision. The software’s ability to provide accurate and reliable results in a timely manner helped NECL’s project with increased efficiency and effectiveness. The software has thus proven to be a valuable asset in the construction industry.

https://test.infycons.com/wp-content/uploads/2023/02/cs-3.webp

Auto Plotter and Road Estimator

Testimonial

We have been using the Road Estimator and AutoPlotter software for the past few years, and it has completely transformed the way we process data and estimate costs. The software's user-friendly features and ability to handle complex construction scenarios have made it easy for our team to quickly and accurately get outputs, saving us time and money. We are very happy with the results and would highly recommend these tools to any construction company looking to improve their estimating and data processing processes.

Veeranjaneyulu Botta
On-demand Webinar

Road Estimator Knowledge Series is LIVE!

Learn how Road Estimator handles different construction scenarios, such as road cross section creation, widening & strengthening and main carriageway with service roads.

FAQ's

Can we use Road Estimator for railway project?

Yes, it is possible and is being used in many railway projects.

Which method is used for volume calculation in Road Estimator?

Volume can be calculated using Trapezoidal / Simpson’s rule.

Is it possible to import total station data (XYZ) in Road Estimator?

No, AutoPlotter with Road Estimator is required in such cases.

Can we generate 6 lane road sections?

Yes, it is possible to define number of lanes/roads/service roads as required.

What is the system requirement?

Supported OS: Windows 10 and above
Minimum RAM: 1 GB
Minimum Space: 2 GB

Do you offer training in the use of Road Estimator software?

Yes, we do offer training in the use of Road Estimator – MasterClass.

How can I purchase Road Estimator Software?

Kindly fill in the purchase/order request form available on this website so that we can get in touch with you. You can also give us a call at +91 80 66320710 or email us at sales@test.infycons.com.

What kind of estimations can be done using the road estimator software?

Road estimator software helps to generate cross sections and the materials that needs to be used in construction of any types of roads and railways.
